ND-PI90

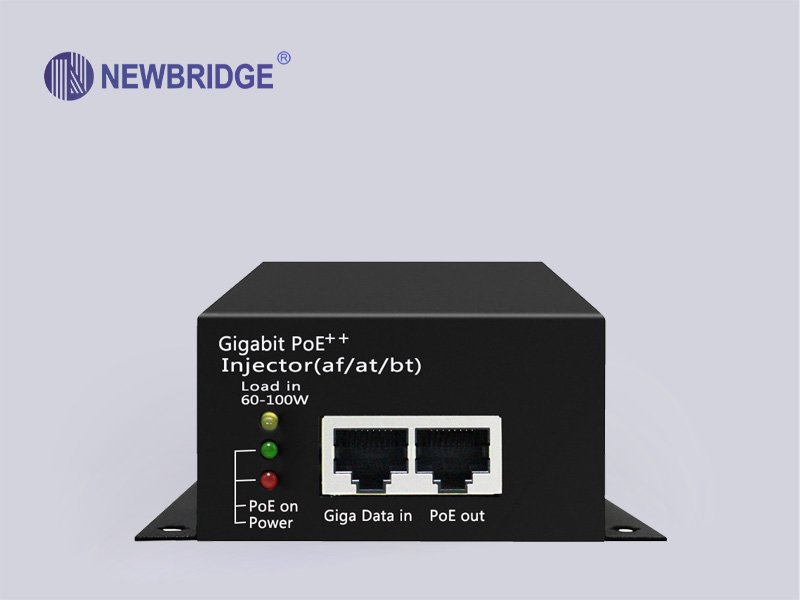

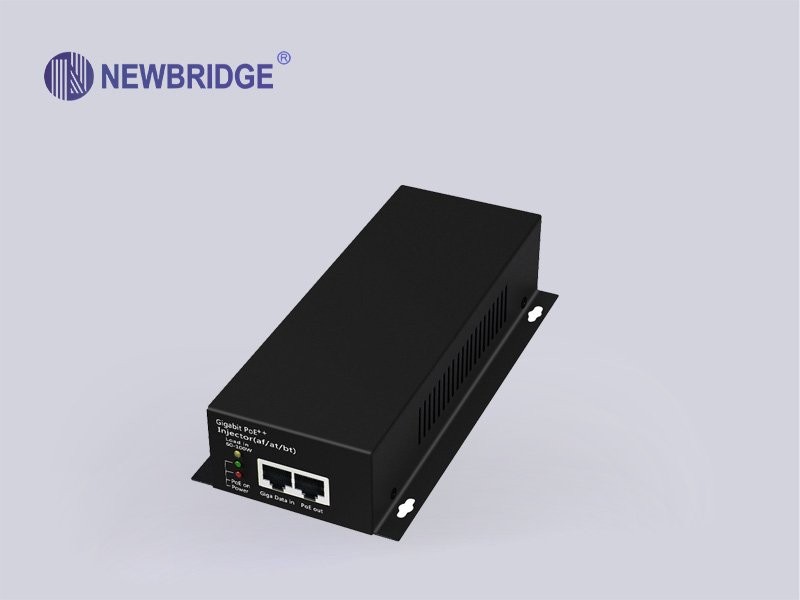

 Click on the picture to enter the Gallery
1
2
Newbridge® ND-PI90 is a single-port high-power PoE power supply device. The device is equipped with a common network input port, a PoE output port, and an AC power input port. The product is based on POE++ design and is compatible with the mid-end crossover method; the device can integrate ordinary network signals into PoE signal output, with a maximum output power of 90W, maximum support for 10/100/1000M networks, transmission distance up to 100m, common mode 4KV, differential Modular 2KV lightning protection and surge protection, effectively improve the anti-interference ability of the product, meet the wide temperature requirements of -10 ° C ~ 40 ° C, the product is widely used in power supply and network transmission of high-speed dome cameras, 11ac wireless AP, lighting, digital signage display systems and other equipment .


FEATURES

  •  Support IEEE802.3BT standard power supply protocol

  •  Backward compatible with IEEE802.3AF/AT

  •  Output power supports up to 90 watts

  •  2 ports Gigabit RJ45, 1GE POE output + 1GE data input

  •  Support dome cameras, industrial wireless APs, etc.

  •  Fluid Control: Full Duplex: IEEE802.3x, Half Duplex: Back Pressure

  •  Auto MDI/MDIX

  •  Support port lightning protection

  •  store and forward

  •  All ports support wire-speed switching, jumbo frame transmission

  •  Plug and play, adaptive

Product Name 90W Gigabit POE Power Supply
Product Model ND-PI90
Interface 1 Gigabit POE power port + 1 Gigabit Ethernet port
Network Media 10BASE-T: Cat5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤200 meter)
1000BASE-TX:Cat5 or later UTP(≤200 meter)



PoE Specification		 PoE Standard:  IEEE802.3af/IEEE802.3at/IEEE802.3bt
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
Max. 90 watts (IEEE 802.3bt)
Output Voltage: DC55V
Power supply pin:1/2 (+) 3/6 (-) or 4/5 (+) 7/8 (-)

Use environment		 Working temperature: -10 ℃~ 40 ℃
Storage temperature: -40～+85℃
Relative Humidity: 5%~95 %( no condensation)
LED Indicators Power Always bright:Device powered up
not bright:Device does not power on
POE power
30%60%90%		 Always bright:current power state
not bright:Power usage below proportional value
power supply Input Voltage:110V-264V  working frequency:50/60Hz
standard test  EMS : IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±15kV air discharge
IEC(EN)61000-4-5(Surge): common mode 6KV, differential mode 1KV
 IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-4(EFT): Power line: ±4kV; Data line: ±2kV
FCC Part15/CISPR32/EN55032;CLASS A
Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Shell IP20 protect grade, metal shell
MTBF 100,000 hours
Weight & Size Product Weight: 0.9 KG
Product size (L×W×H): 187mm× 95mm× 40mm
Warranty 2-years

10/100/1000M PoE injector 90W
