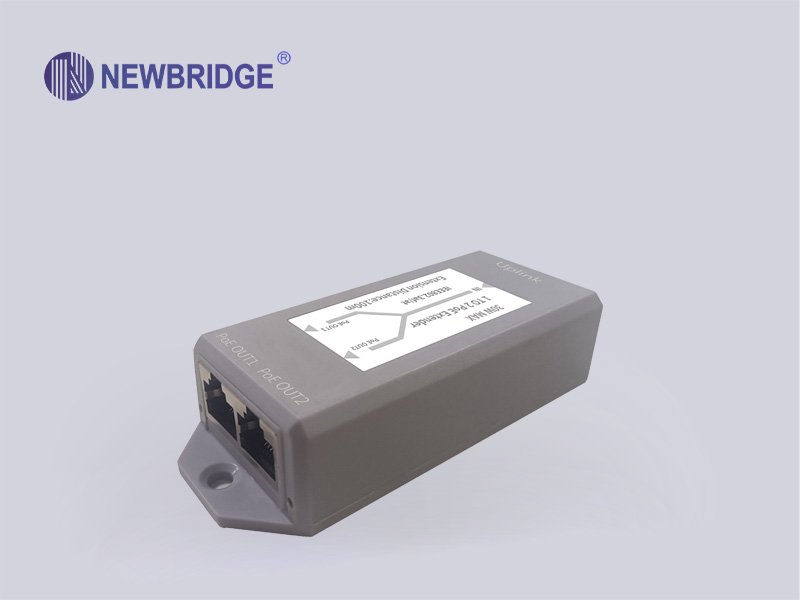

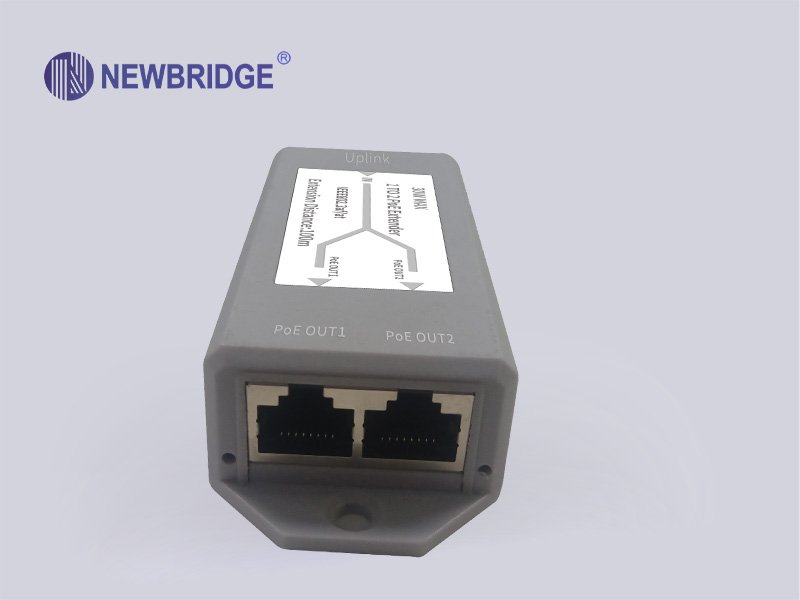

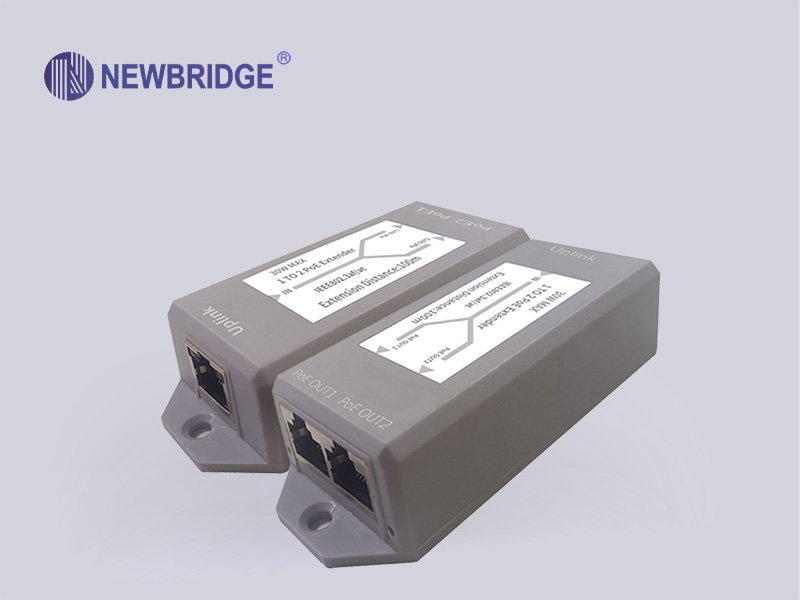

ND-PE102

 Click on the picture to enter the Gallery
1
2
3
Newbridge® ND-PE102 1 PD power receiving interface POE IN + 2 standard POE output interfaces POE OUT1 or POE OUT2, national standard intelligent POE cascade treasure, also known as POE repeater, POE extender and other names; this is a high-performance, low-power The 10/100M trunk line extension transmission POE switch with high power consumption is the best choice for security monitoring, POE power supply transmission networking, and small-scale intelligent construction. Provides 2*10/100Mbps ports and 1*10M/100Mbps POE PD power receiving interface, which can be used to connect upstream devices with higher bandwidth. Support standard POE input, port supports 52V output, 30W power. Store and forward technology is used to ensure that bandwidth is effectively allocated to each port. The full line-speed 100M rate is connected to the workgroup or server, no power supply design, easy to plug and play, this flexible non-blocking structure, users can use without the limitation of bandwidth and media network. The switching port supports half-duplex and full-duplex working modes, each switching port supports adaptive function, and the port adopts the store-and-forward mode. networking solutions.

FEATURES

  •  Support IEEE 802.3/802.3u

  •  3*10/100Mbps auto-adaptive RJ45, support automatic flip (Auto-MDI/MDIX)

  •  Support 1K MAC address

  •  Support EEPROM configuration

  •  Support IEEE802.3 af/at

  •  All ports support 2KV lightning protection

  •  Support 16 VLANs (IEEE Std 802.1q)

  •  Support maximum forwarding packet length 2048 bytes

  •  With overload protection, output short circuit protection and other functions

  •  It has the characteristics of small size, high efficiency, stable operation, long-distance transmission, etc.

Product Name 3-port standard POE cascade treasure (POE repeater, POE extender)
Product Model ND-PE102
Interface 1* 10/100M RJ45 POE OUT1（Auto Negotiation/Auto MDI/MDIX）
1* 10/100M RJ45 POE OUT2（Auto Negotiation/Auto MDI/MDIX）
1*10/100M POE IN（PD reciprocating）（Auto Negotiation/Auto MDI/MDIX）
Standard/Protocol IEEE 802.3u, IEEE 802.1Q,IEEE 802.1p,IEEE 802.3af/at
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)

Cascading POE OUT1 or POE OUT2 interface for cascading applications
Forwarding Mode Store-and-Forward

Performance Specification		 Bandwidth:0.6Gbps
Packet Buffer Memory:768kbits
packet forwarding rate:0.447MPPS
MAC Address Table: 1K
jumbo frame:2018bytes
LED Indicators Power: PWR; Link; PoE; Link/Act



PoE Specification		 PoE Standard: IEEE802.3af/ IEEE802.3at
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
PoE port Auto detect AF/AT devices
Output Voltage: DC48-57V
Power supply pin:1/2 (+) 3/6 (-) or 4/5 (+) 7/8 (-), input and output ports support 4-pin/8-pin power supply
Power Type: End-span( Mid-span optional)
Static power:<0.2W

Use environment		 Working temperature: -10 ℃~ 70 ℃ (32℉~127℉)
Storage temperature: -40 ℃~85 ℃ (-97℉~142℉)
Working humidity: 10%~90%
non-condensing Storage humidity: 5%~95% non-condensing
Shell plastic shell
Warranty 1-years

3-port standard POE cascade treasure, 1* 10/100M RJ45 POE OUT1（Auto Negotiation/Auto MDI/MDIX） 1* 10/100M RJ45 POE OUT2（Auto Negotiation/Auto MDI/MDIX） 1*10/100M POE IN（PD reciprocating）（Auto Negotiation/Auto MDI/MDIX）
