ND-PI30

 Click on the picture to enter the Gallery

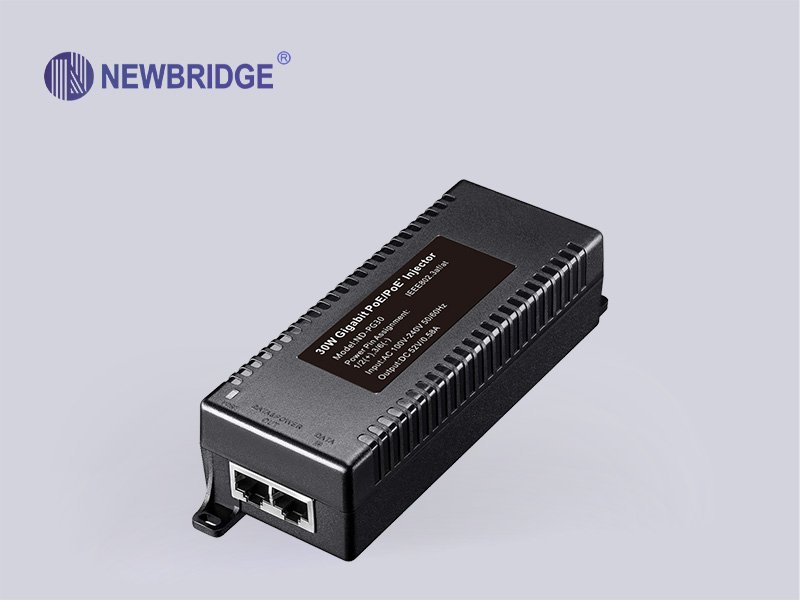

PI30

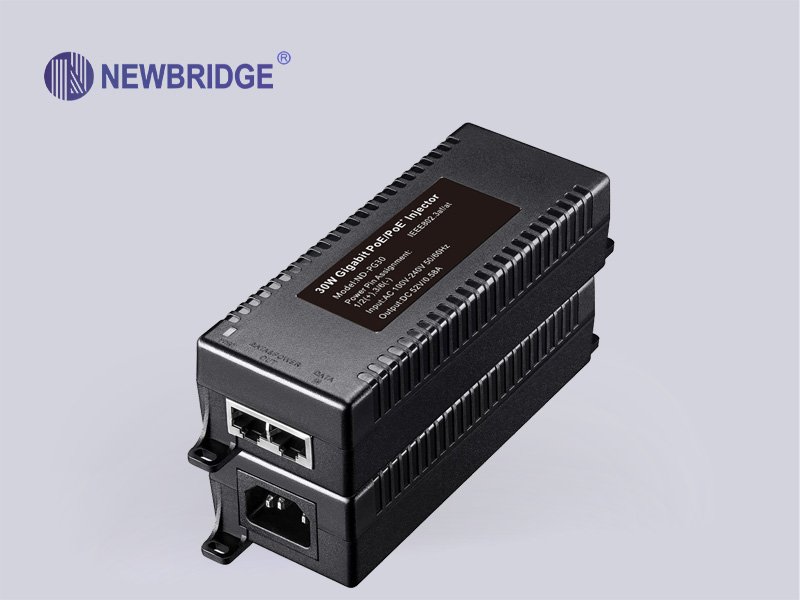

PI31
Newbridge®ND-PI30  is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC input power port. It supports end-span PoE and the output power consumption is up to 30W. It features:10/100M/1000Mbps network, 100m transmission distance, 6KV lightning protection, industrial-level chip, and patent alert. it's an excellent choice for power supply and network transmission on PTZ cameras, all-in-one PC, digital display system.
PoE injectors connect non-PoE switches to PoE-powered devices via a network cable to provide power and data transmission. By eliminating the need to install additional power supplies for powered devices, PoE injectors effectively enhance network flexibility and scalability at a lower cost and allow equipment installation regardless of positions and existing network architectures.

FEATURES

  •  Support IEEE802.3AF/AT standard power supply protocol

  •  Output power supports up to 30 watts

  •  2 ports Gigabit RJ45, 1GE POE output + 1GE data input

  •  Support dome cameras, industrial wireless APs, etc.

  •  Fluid Control: Full Duplex: IEEE802.3x, Half Duplex: Back Pressure

  •  Auto MDI/MDIX

  •  Support port lightning protection

  •  store and forward

  •  All ports support wire-speed switching, jumbo frame transmission

  •  Plug and play, adaptive

Product Name 30W Gigabit POE Power Supply
Product Model ND-PI30
Interface 1 Gigabit POE power port + 1 Gigabit Ethernet port
Network Media 10BASE-T: Cat5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤200 meter)
1000BASE-TX:Cat5 or later UTP(≤200 meter)



PoE Specification		 PoE Standard:  IEEE802.3af/IEEE802.3at
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)

Output Voltage: DC55V
Power supply pin:1/2 (+) 3/6 (-) or 4/5 (+) 7/8 (-)

Use environment		 Working temperature: -10 ℃~ 40 ℃
Storage temperature: -40～+85℃
Relative Humidity: 5%~95 %( no condensation)
LED Indicators Power Power Indicator: Yellow
PoE load indicator: green
power supply Input Voltage:110V-264V  working frequency:50/60Hz
Protection Surge PoE Power: 1kV(Differential Mode),
kV(Common Mode)1.2/50us，8/20us
Ethernet: 2kV(Differential Mode),
6kV(Common Mode)10/7000us
ESD 1a Contact Discharge Level 3
1b  Air Discharge Level 3
Per: IEC61000-4-2
Shell IP40 protect grade, Plastic housing
MTBF 100,000 hours
Weight & Size Product Weight: 0.3 KG
Product size (L×W×H): 140mm× 55mm× 40mm
Warranty 2-years

10/100/1000M PoE injector 30W
