Feature:

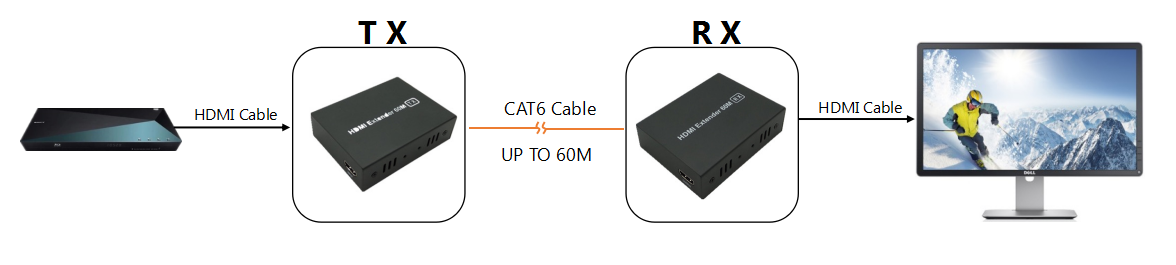

1.Transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
2.Support video resolution up to 1920*1200@60Hz, 3D signal
1.Transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
2.Support video resolution up to 1920*1200@60Hz, 3D signal
3.Support copy EDID function, can match many kind display device;
4.Compliance with HDMI 1.3 and HDCP 1.2 standard
5.High compatibility, can auto-match source and display device;
6.Built-in automatic adjustment system, make the image smooth, clear and stable;
7..Built-in ESD protection system, Simple to install, plug and play
5.High compatibility, can auto-match source and display device;
6.Built-in automatic adjustment system, make the image smooth, clear and stable;
7..Built-in ESD protection system, Simple to install, plug and play

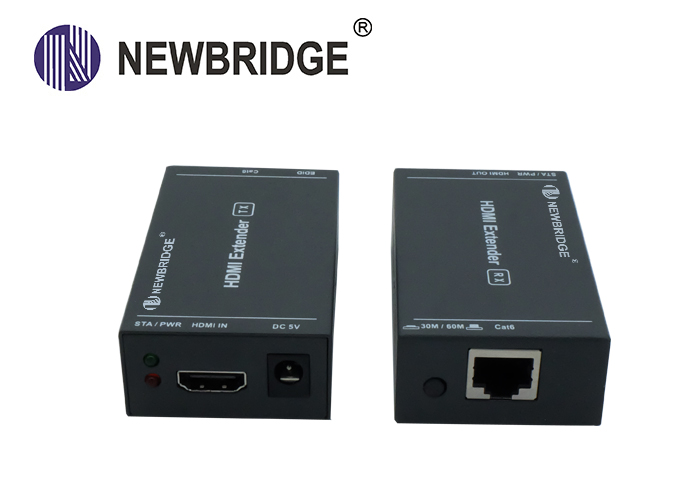

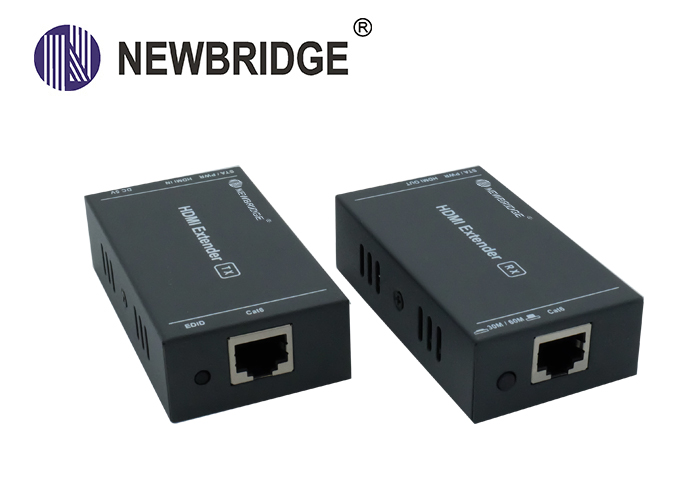

| Port name | Description |
| INPUT/OUTPUT | HDMI signal input/output |
| Cat5e/6 | RJ45 port connect cat5e/6. |
| DC5-15V | Power adapter socket |
| EDID | EDID button, press 3 second to copy EDID form displayer that connect TX INPUT port. |
| LED indicator | Description |
| POWER | System power indicator |
| STATUS |
Video signal indicator. Copy EDID indicator |
| Parameter |
Desc |
|
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Maximum resolution | 1920*1200@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| UTP | Interface | RJ45 |
| Transmission distance | CAT6-60M | |
| Other | Power supply | The power adapter: DC 5-15V |
| Power dissipation | MAX 3W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 94.5*71*26mm | |
| The warranty | 1 year free warranty | |
HDMI extender60mHDMI 1.3; HDCP 1.25V1A/DC，up to 1920*1080/60Hz
