2.Feature

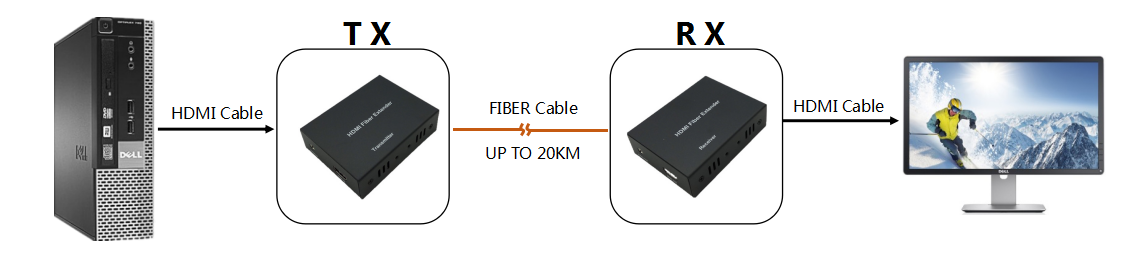

Transmits HDMI video and audio signals up to 20km over one fiber optic cable;
Support video resolution up to 1920*1080@60Hz;
Support IR transmission;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;Simple to install, plug and play
Transmits HDMI video and audio signals up to 20km over one fiber optic cable;
Support video resolution up to 1920*1080@60Hz;
Support IR transmission;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;Simple to install, plug and play
| Port name | Description |
| HDMI IN/OUT | HDMI signal input/output |
| IR IN/OUT | Infrared signal input/output |
| FIBER | Optical fiber interface |
| DC/5V | Power adapter socket |
| RESET | Restore button, press for 5 second to restore system setting to factory default |
| LED indicator | Description |
| LINK | Optical fiber signal connection indicator |
| STA | Video signal connection indicator |
| PWR | System power indicator |
yle="width: 1134px; height: 264px;" />| Parameter |
Desc |
|
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution range | Up to 1920X1080P@60Hz | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| Infrared | Interface | 3.5mm earphone seat |
| Signal type | Digital | |
| Transmission direction | Unidirectional | |
| Carrier frequency | 38kHz | |
| Optical fiber | Interface | SC/FC connector |
| Fiber type | Single Mode | |
| Wavelength | 1310nm 1510nm | |
| Interface bandwidth | 155Mbps | |
| Transmission distance | Standard: 20km; | |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 5W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 113*80*28mm | |
| The warranty | 1 year free warranty | |
