ND8110HFU

 Click on the picture to enter the Gallery
Feature

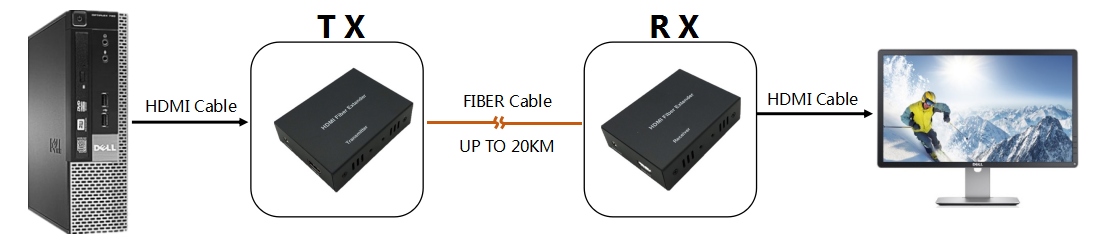

Transmits HDMI video signals up to 20km over a pair fiber optic cable;
Support video resolution max up to 1080p@60Hz;
Compliance with HDMI 1.3 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Port name Description
HDMI IN/HDMI OUT HDMI signal input/output
DC 5V Power adapter socket
OPT IN/OUT Optical fiber input/output.
LED indicator Description
STA HDMI video signal detection lamp.
PWR System power indicator
Port name Description
HDMI IN/HDMI OUT HDMI signal input/output




yle="width: 1109px; height: 247px;" />
Parameter Description
Video Standards HDMI 1.3HDCP 1.2
Maximum pixel clock 225MHz
Maximum data rate 6.75Gbps
Resolution range 720x576@50Hz；720x480@60Hz；640x480@75/60Hz；800x600@75/60Hz；1024x768@75/60Hz；1280x800@60Hz；1280x1024@60Hz；1440x900@60Hz；1680x1050@60Hz；1280x720@25/30/5060Hz；1920X1080P@25/30/50/60Hz
Connector HDMI-A Interface
HDMI Cable Range <5M( Resolution: 1920*1080@60Hz)
Impedance 100Ω
Optical fiber Interface SC
Fiber type Single-mode
Wavelength Single-mode 1310nm
Interface bandwidth 1.25Gbps
Transmission distance Single-mode fiber: maximum 20km
Other Power supply The power adapter: DC 5V
Power dissipation MAX 4W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 94.5*73*26mm


HDMI Extender Via Fiber 1 single mode single Fiber no compression can transmit 20KM 2 SC fiber interface 3 support the highest resolution 1920 * 1080 "P" @ 60Hz (normal down)
