1. Overview

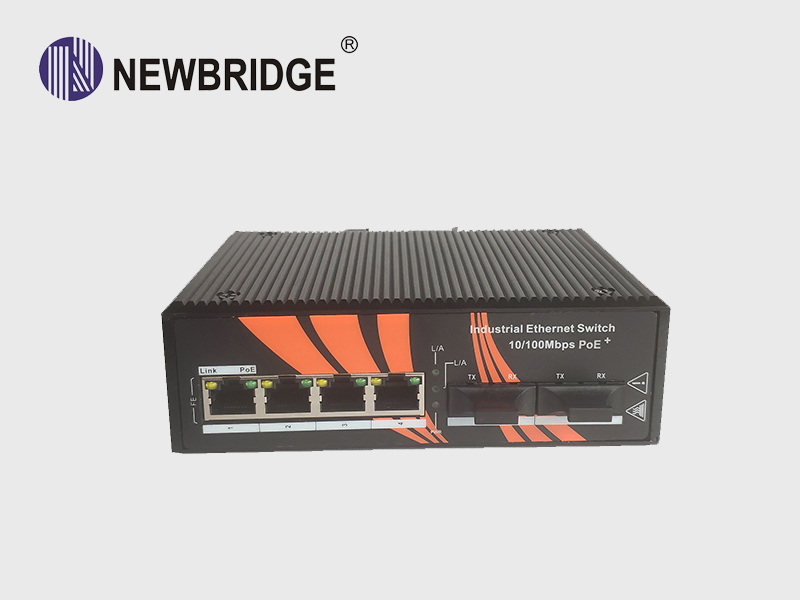

Newbridge®ND2P-2FX4TX-SC Industrial PoE Fiber switch, 4 Port 10/100Mbps PoE ports and 2 port 100Mbps SC Fiber port,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection and 6KV port Lightning protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry- standard types of power.
|
Product Name |
4 Port 10/100M Industrial PoE Fiber Switch |
| Product Model | ND2P-2FX4TX-SC |
| Interface | 4x10/100Base-T PoE port + 2x 100Mbps SC optical port |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; IEEE802.3af,IEEE802.3at |
|
PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports: 4 port support PoE | |
|
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
| PoE port Auto detect AF/AT devices | |
| Output Voltage: DC48-57V | |
| Power Pin Assignment:1/2+;3/6- | |
| Power Type: End-span( Mid-span optional) | |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM Inferface:2*SC |
|
Performance Specification |
Bandwidth: 1.2Gbps Packet Buffer Memory:512K 10 Mbps Packet Forwarding Rate：14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port MAC Address Table: 1K |
| Forwarding Mode | Store-and-Forward |
| Protection | 6KV Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; PoE; Link/Act |
|
Power Supply |
Input Power: 48~57VDC (Terminal Block) Input Power:2* 48~57VDC(Dual power redundancy backup) Working Consumption : <5W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 30s Alarm contact : No |
| Other Specifications | |
|
Working Environment |
Working temperature: -40～+85℃ ; Storage temperature: -45～+85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC6100-4-3 (RS): 10V/m (80MHz-2GHz) IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s) IEC (EN) 61000-4-8：support IEC 60068-2-27(Shock):support IEC 60068-2-32(Freefall):support IEC 60068-2-6(Vibration）：support |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
|
Packing List |
1×Industrial PoE Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit |
|
Certification |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours |
| Weight & Size |
Product Weight: 0.6KG Product size (L×W×H): 143mm× 101mm× 44mm |
| Warranty | 3-years |
4*10/100 Base-Tx Non-managed PoE Fiber Switch,2*100M SC port ,Industrial , aluminum alloy, DIN Rail, DC48~57V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHS - DC power supply is not included by default.
