ND2PM-2FX6TX-SC

 Click on the picture to enter the Gallery

1. Overview

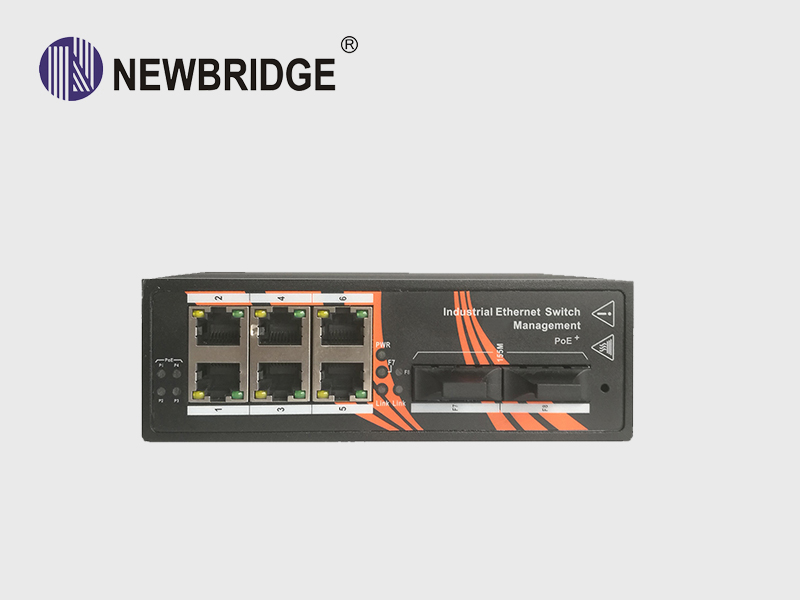

Newbridge® ND2PM-2FX6TX-SC Industrial PoE Fiber switches, 6 Port 10/100Mbps PoE ports and 2 port 100Mbps SC, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power

Product Name 6 Port 10/100M Managed Industrial PoE Fiber Switches
Product Model ND2PM-2FX6TX-SC
Interface 6x 10/100base-T ports PoE + 2x 100M SC port + 1 Console port

Network Protocols
IEEE802.3 10base-T; IEEE802.3i 10base-T;IEEE802.3u;100base-TX/FX; IEEE802.3ab 1000base-T; IEEE802.3z 1000base-X; IEEE802.3x;IEEE802.3af IEEE802.3at




PoE Specification
PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports: 1-6 ports support PoE
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
PoE port Auto detect AF/AT devices
Output Voltage: DC48-57V
Power Pin Assignment:1/2+;3/6-
Power Type: End-span( Mid-span optional)

Network Media
10base-T: Cat345 UTP(≤100 meter)
100base-TX: Cat5 or later UTP(≤100 meter)
1000base-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Multi-mode: 2KM
Single-mode: 20/40/60/80KM
Interface:2*SC

Performance Specification
Bandwidth: 1.6Gbps
Packet Buffer Memory:2Mbits
10 Mbps Packet Forwarding Rate:14880 pps/port
100Mbps Packet Forwarfding Rate:148800 pps/port
MAC Address Table: 4K
Switching Delay: <5us
Forwarding Mode Store-and-Forward
Protection 6KV Lightening protection IP40 protection
LED Indicators Power: PWR; link; PoE; link/Act



Power Supply
Input Power: 48~57VDC (Terminal Block)
Input Power:2* 48~57VDC(Dual power redundancy backup)
Working Consumption : <5W
Connectors : Phoenix terminal
Overload protection :20A
Reverse polarity protection : 120s
Alarm contact : No

layer 2 Switching
Spanning Tree Protocol (STP) Standard Spanning Tree (STP) 802.1d
Rapid Spanning Tree (RSTP) 802.1w
Multiple Spanning Tree (MSTP) 802.1s
G.8032 ERPS <20ms ring protection for industrial high reliable application
Aggregation link Aggregation Control Protocol (LACP) IEEE 802.3ad;
Up to 7 groups ; Up to 14 ports per group
VLAN Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ;
Port-based VLAN; IEEE 802.1Q tag-based VLAN
IGMP v1/v2 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters;
Supports 256 multicast groups
GMRP supports GARP multicast registration protocol
MAC Locks MAC Addresses to ports;
Learned MAC address limiting;

QOS
based on 802.1p (COS) classification; based on DSCP classification
based on the source IP destination IP port number classification
Support SP WRR DRR scheduling strategy; Support traffic speed limit CAR
MPLS MPLS supports static LSP
Support VPN MPLS
Routing Protocols IPv4 software static routing
IPv6 software static routing
LLDP supports LLDP link discovery protocol
System management User add / delete user; User login operation status event log
Device reset configuration save/restore upgrade management time setting
Security
Secure Shell (SSH)
Protocol
SSH secures Telnet traffic in or out the switch SSH v1 and v2 are supported
Secure Sockets layer
(SSL) HTTPS
SSL encrypts the http traffic allowing advance secure access to the browser-
based management GUI in the switch
Port Security Locks MAC Addresses to ports and limits learned MAC addresses
DHCP Snooping Prevent unauthorized configuration and use of IP addresses while providing
support for IP Source Guard and ARP detection
ACLs Support for up to 256 entries; Drop or rate limitation based on source and
destination MAC VLAN ID or IP address protocol port differentiated services code point (DSCP) / IP precedence TCP/ UDP source and destination ports 802.1p priority Ethernet type Internet Control Message Protocol (ICMP) packets IGMP packets TCP flag
IP Source Guard Prevents datagram with spoofed addresses from being in the network
ARP Inspection Prevent ARP spoofing attacks and ARP
Storm control Prevents traffic on a LAN from being disrupted by a broadcast multicastor unicast storm on a port


Management (Web/ SSL SSH ping Trivial File Transfer Protocol (TFTP) SNMP Syslog)

Web GUI interface
Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs).
Supports configuration system dashboard maintenance and monitoring
Dual Image Dual image provides independent primary and secondary OS files for backup while upgrading
Firmware upgrade Web browser upgrade (HTTP/ HTTPs) and TFTP; Upgrade through console port

Port mirroring
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe.
 Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
Other management Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client; SNTP; cable diagnostics; ping; syslog; Telnet client (SSH secure support)
Other Specifications

Working Environment
Working temperature: -40~+85℃ ;
Storage temperature: -40~+85℃
Relative Humidity: 5%~95 %( no condensation)



Industry Standard
FCC CFR47 Part 15EN55022/CISPR22
Class A EMS:
IEC61000-4-2 (ESD): ±8kV (contact) ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±4kV/DM ±6kV/CM; Data Port: ±4kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.) 300V (1s)
IEC (EN) 61000-4-8:support
IEC 60068-2-27(Shock):support
IEC 60068-2-32(Freefall):support
IEC 60068-2-6(Vibration):support
Shell IP40 protect grade metal shell
Installation DIN-Rail or Wall mounts

Packing List
1×Industrial PoE Switch (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit

Certification
CE mark commercial;
 FCC Part 15 Class B;
VCCI Class B
EN 55022 (CISPR 22) Class B
MTBF 300000 hours
Weight & Size Product Weight: 0.9 KG
Product size (L×W×H): 170mm× 160mm× 50mm
Warranty 3-years

2*100M SC port 6*10/100base-Tx managed PoE Fiber Switch Industrial aluminum alloy DIN Rail DC48~57V power supply Wide temperature (-40°C-85°C)CE-FCC-RoHs - DC power supply is not included by default.
