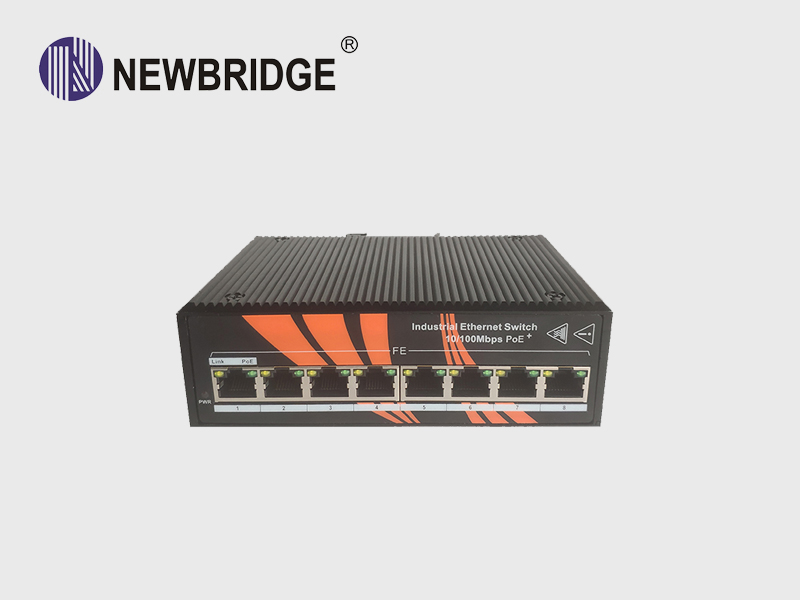

ND2P08TX

 Click on the picture to enter the Gallery

1. Overview
Newbridge® ND2P08TX Industrial PoE switches, 8 Port 10/100Mbps PoE ports ,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power

Product Name 8 Port 10/100M Industrial PoE Switch
Product Model ND2P08TX
Interface 8x10/100base-T PoE port

Network Protocols		 IEEE802.3 10base-T; IEEE802.3i 10base-T;IEEE802.3u;100base-TX/FX; IEEE802.3ab 1000base-T; IEEE802.3z ; IEEE802.3x; IEEE802.3afIEEE802.3at




PoE Specification		 PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports: 8 port support PoE
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
PoE port Auto detect AF/AT devices
Output Voltage: DC48-57V
Power Pin Assignment:1/2+;3/6-
Power Type: End-span( Mid-span optional)

Network Media		 10base-T: Cat345 UTP(≤100 meter)
100base-TX: Cat5 or later UTP(≤100 meter)
1000base-TX: Cat6 or later UTP(≤100 meter)

Performance Specification		 Bandwidth: 1.6Gbps
Packet Buffer Memory:1.6M
10 Mbps Packet Forwarding Rate：14880 pps/port
100Mbps Packet Forwarfding Rate:148800 pps/port
MAC Address Table: 2K
Forwarding Mode Store-and-Forward
Protection 6KV Lightening protection IP40 protection
LED Indicators Power: PWR; link; PoE; link/Act
Power Supply Input Power: 48~57VDC (Terminal Block)
Input Power:2* 48~57VDC(Dual power redundancy backup)
Working Consumption : <5W
Connectors : Phoenix terminal
Overload protection :20A
Reverse polarity protection : 30s
Alarm contact : No

Working Environment		 Working temperature: -40～+85℃ ;
Storage temperature: -45～+85℃
Relative Humidity: 5%~95 %( no condensation)




Industry Standard		 FCC CFR47 Part 15EN55022/CISPR22
Class A EMS:
IEC61000-4-2 (ESD): ±8kV (contact) ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM ±4kV/CM;
Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.) 300V (1s)
IEC (EN) 61000-4-8：support
IEC 60068-2-27(Shock):support
IEC 60068-2-32(Freefall):support
IEC 60068-2-6(Vibration）：support
  Shell IP40 protect grade metal shell
  Installation DIN-Rail

Packing List		 1×Industrial PoE Switch (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit
  Certification CE mark commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22) Class B
  MTBF 300000 hours

Weight & Size		 Product Weight: 0.6KG
Product size (L×W×H): 157mm× 120mm× 48mm
  Warranty 3-years

8*10/100 base-Tx Non-managed PoE Switches Industrial aluminum alloy DIN Rail DC48~57V power supply Wide temperature (-40°C-85°C)CE-FCC-RoHS - DC power supply is not included by default.
