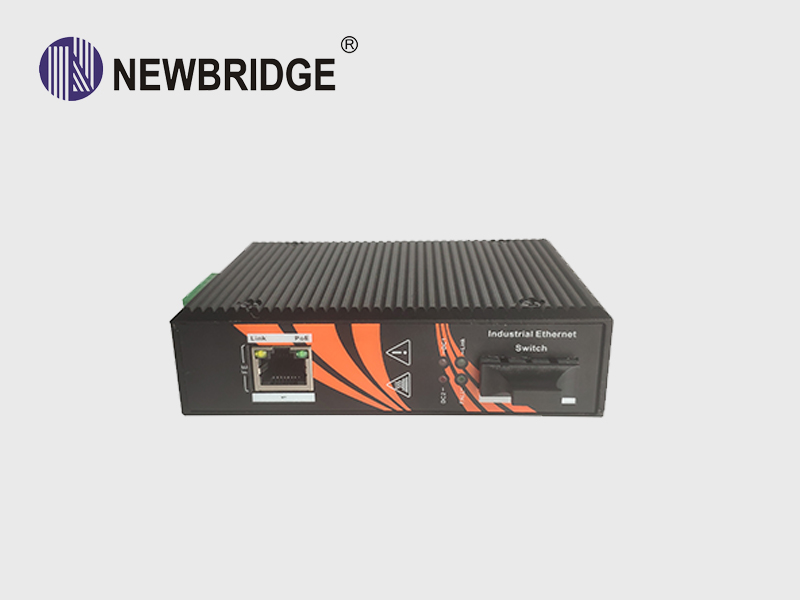

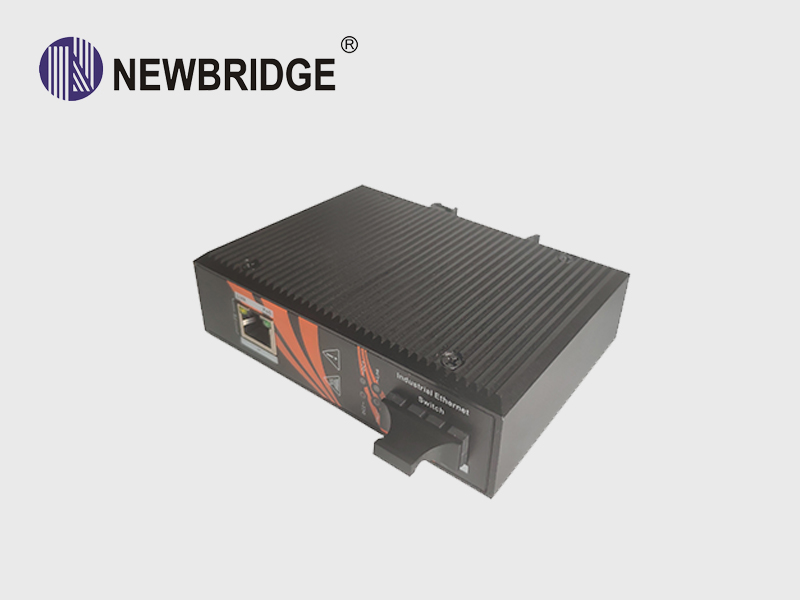

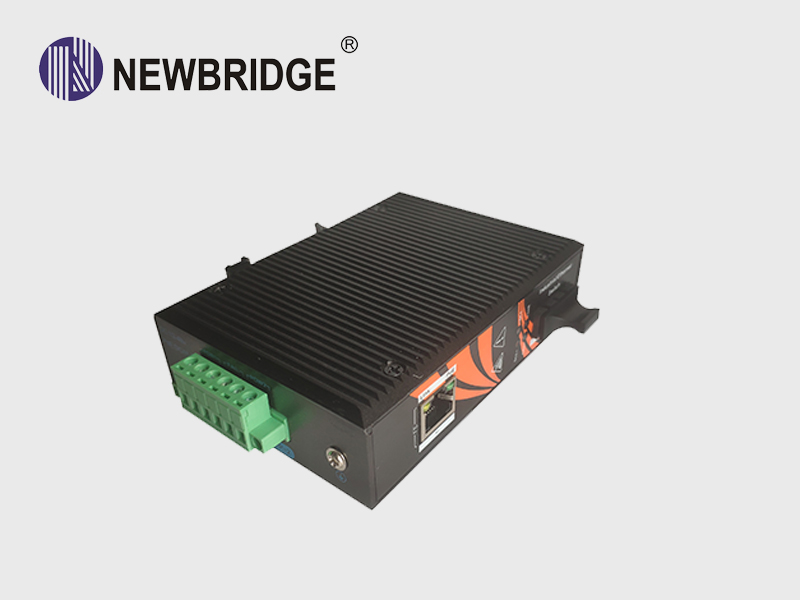

ND-X820-1FX1TX-SC

 Click on the picture to enter the Gallery
Feature :
Input Voltage: DC:9-60V
Operating Temperature:-40℃ ~ +85℃
Shell: IP40, Fanless design
Test Report: CCC, RoHS, FC, CE, ISO
Anti-static: 8KV-15KV
MTBF: 100000Hours
Overview:
ND-X820-1FX1TX Industrial Ethernet Switches uses store-forward architecture, fanless and energy-saving design. The advantage of product are small, convenient and easy to maintain. The product design complies with the Ethernet standard, adding lightning protection, anti-static protection measures. It applies to the wide range of operating temperature from -40℃ ~ +85℃ with stable and reliable performance. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

3. Specifications

Product Name
1 Port 10/100Mbps Industrial Fiber Switch
Product Model ND-X820-1FX1TX
Interface 1x10/100Base-T Ethernet port + 1x 100Mbps Optical port

Network Protocols
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x;

Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media Multi-mode: 2KM
Single-mode: 20/40/60/80KM
Interface:SC/SFP

Performance Specification
Bandwidth: 1Gbps
Packet Buffer Memory:512K
10 Mbps Packet Forwarding Rate:14880 pps/port
100Mbps Packet Forwarfding Rate:148800 pps/port
MAC Address Table: 1M
Forwarding Delay:<3us
Forwarding Mode Store-and-Forward
Protection 6KV Lightening protection, IP40 protection
LED Indicators Power: PWR; Link; PoE; Link/Act


Power Supply
Input Power: 12~48VDC (Terminal Block)
Input Power:2* 12~48VDC(Dual power redundancy backup)
Working Consumption : <5W
Connectors : Phoenix terminal
Overload protection :20A
Reverse polarity protection : 30s
Alarm contact : No
Other Specifications

Working Environment
Working temperature: -40~+85℃ ;
Storage temperature: -45~+85℃
Relative Humidity: 5%~95 %( no condensation)



Industry Standard
FCC CFR47 Part 15,EN55022/CISPR22,
Class A EMS:
IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC6100-4-3 (RS): 10V/m (80MHz-2GHz)
IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
IEC (EN) 61000-4-8:support
IEC 60068-2-27(Shock):support
IEC 60068-2-32(Freefall):support
IEC 60068-2-6(Vibration):support
Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts

Packing List
1×Industrial PoE Switch (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit

Certification
CE mark, commercial;
FCC Part 15 Class B;
VCCI Class B
EN 55022 (CISPR 22), Class B
MTBF 300,000 hours
Weight & Size Product Weight: 0.36KG
Product size (L×W×H): 118mm× 86mm× 39mm
Warranty 3-years

1*10/100 Base-Tx Non-managed Fiber Switch,1*100M SC port ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHS - DC power supply is not included by default. 1*10/100 Base-Tx Non-managed Fiber Switch,1*100M SFP Slot ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHS - DC power supply is not included by default.
