Feature :
Input Voltage: DC:9-60V
Operating Temperature:-40℃ ~ +85℃
Shell: IP40, Fanless design
Test Report: CCC, RoHS, FC, CE, ISO
Anti-static: 8KV-15KV
MTBF: 100000Hours
Overview:

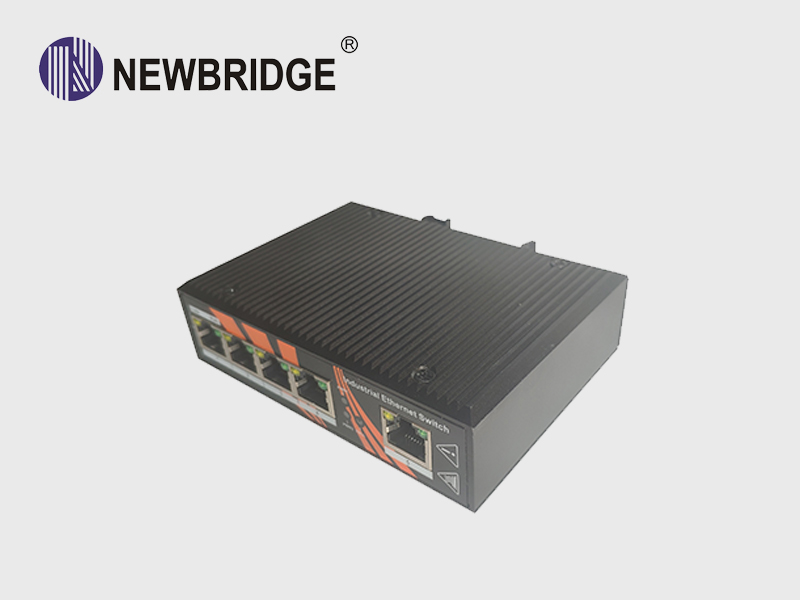

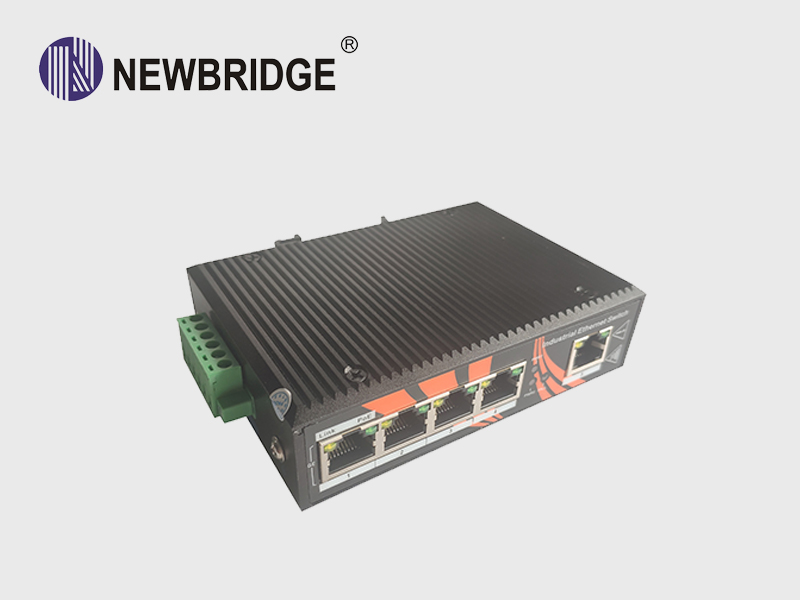

ND-X920-5TX Industrial Ethernet Switches uses store-forward architecture, fanless and energy-saving design. The advantage of product are small, convenient and easy to maintain. The product design complies with the Ethernet standard, adding lightning protection, anti-static protection measures. It applies to the wide range of operating temperature from -40℃ ~ +85℃ with stable and reliable performance. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.
Input Voltage: DC:9-60V
Operating Temperature:-40℃ ~ +85℃
Shell: IP40, Fanless design
Test Report: CCC, RoHS, FC, CE, ISO
Anti-static: 8KV-15KV
MTBF: 100000Hours
Overview:
ND-X920-5TX Industrial Ethernet Switches uses store-forward architecture, fanless and energy-saving design. The advantage of product are small, convenient and easy to maintain. The product design complies with the Ethernet standard, adding lightning protection, anti-static protection measures. It applies to the wide range of operating temperature from -40℃ ~ +85℃ with stable and reliable performance. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.
| Product Name | 5 Port 10/100/1000Base-TX Industrial Ethernet Switches |
| Product Model | ND-X920-05TX |
| Interface | 5x10/100/1000Base-T Ethernet port |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Performance Specification |
Bandwidth: 10Gbps Packet Buffer Memory:2M 10 Mbps Packet Forwarding Rate：14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port 1000Mbps Packet Forwarding Rate:1488000pps/port MAC Address Table: 4K |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightning protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply |
Input Power: 12~48VDC (Terminal Block) Input Power:2* 12~48VDC(Dual power redundancy backup) Power Consumption : <5W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 30s Alarm contact : No |
5*10/100/1000 Base-Tx Non-managed Switches ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40℃-85℃),CE-FCC-RoHs - DC power supply is not included by default.
