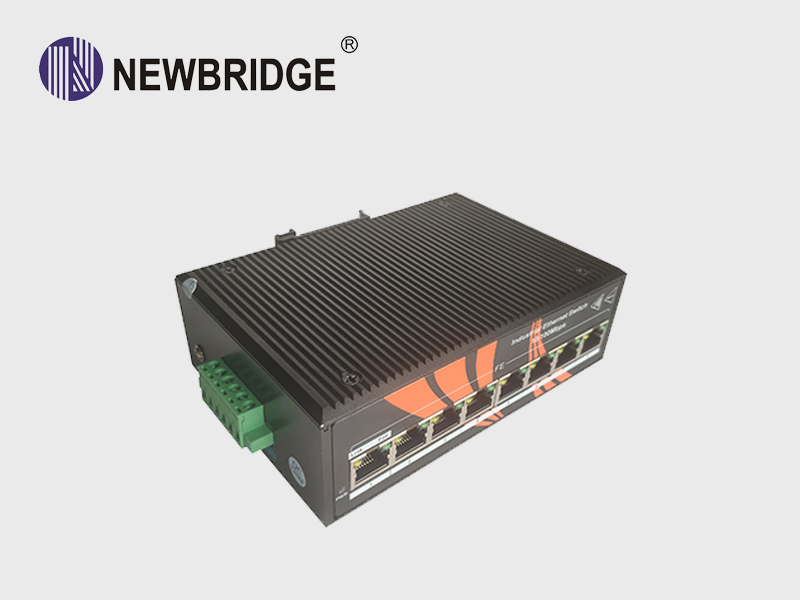

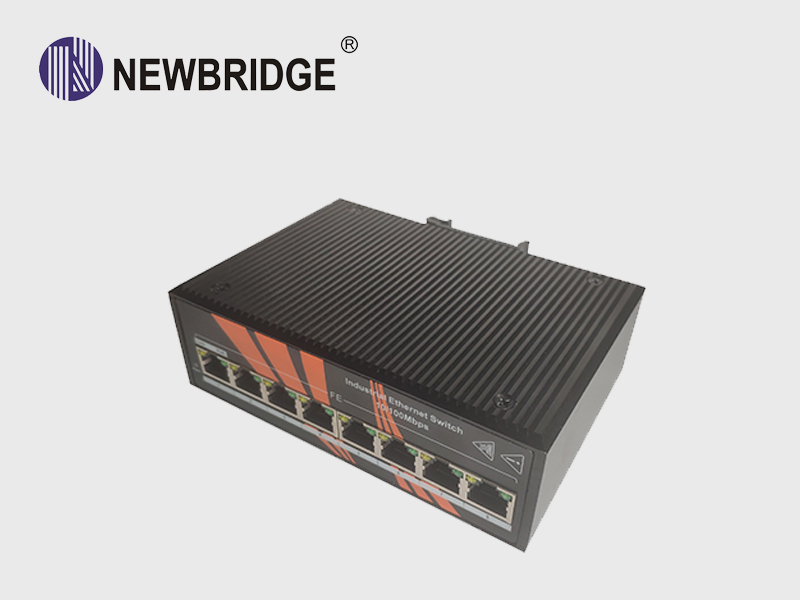

ND-X820-08TX

 Click on the picture to enter the Gallery
Feature :
Input Voltage: DC:9-60V
Operating Temperature:-40℃ ~ +85℃
Shell: IP40, Fanless design
Test Report: CCC, RoHS, FC, CE, ISO
Anti-static: 8KV-15KV
MTBF: 100000Hours

Product Name 8 Port 10/100base-TX Industrial Ethernet Switch
Product Model ND-X820-08TX
Interface 8x10/100base-T Ethernet port
Network Protocols IEEE802.3 10base-T; IEEE802.3i 10base-T;IEEE802.3u;100base-TX/FX;
IEEE802.3ab 1000base-T; IEEE802.3z 1000base-X; IEEE802.3x;

Network Media		 10base-T: Cat345 UTP(≤100 meter)
100base-TX: Cat5 or later UTP(≤100 meter)
1000base-TX: Cat6 or later UTP(≤100 meter)
Performance Specification Bandwidth: 1.6Gbps
Packet Buffer Memory:1M
10 Mbps Packet Forwarding Rate：14880 pps/port
100Mbps Packet Forwarfding Rate:148800 pps/port
MAC Address Table: 4K
Forwarding Mode Store-and-Forward
Protection Lightning protection IP40 protection
LED Indicators Power: PWR; link; link/Act
Power Supply Input Power: 12~48VDC (Terminal Block)
Input Power:2* 12~48VDC(Dual power redundancy backup)
Power Consumption : <5W
Connectors : Phoenix terminal
Overload protection :20A
Reverse polarity protection : 30s
Alarm contact : No
Other Specifications

Working Environment		 Working temperature: -40～85℃ ;
Storage temperature: -45～85℃
Relative Humidity: 5%~95 %( no condensation)


Industry Standard		 FCC CFR47 Part 15EN55022/CISPR22
Class A EMS:
IEC61000-4-2 (ESD): ±8kV (contact) ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM ±4kV/CM;
Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.) 300V (1s)
IEC (EN) 61000-4-8：support
IEC 60068-2-27(Shock):support
IEC 60068-2-32(Freefall):support
IEC 60068-2-6(Vibration）：support
Shell IP40 protect grade metal shell
Installation DIN-Rail or Wall mounts

Packing List		 1×Industrial Ethernet Switch (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit
Certification CE markFCC Part 15 Class B; RoHs
MTBF 300000 hours
Weight & Size Product Weight: 0.6KG
Product size (L×W×H): 157mm× 120mm× 48mm
Warranty 3-years

8*10/100 base-Tx Non-managed Ethernet Switches Industrial aluminum alloy DIN Rail DC12~48V power supply Wide temperature (-40℃-85℃)CE-FCC-RoHS - DC power supply is not included by default.
