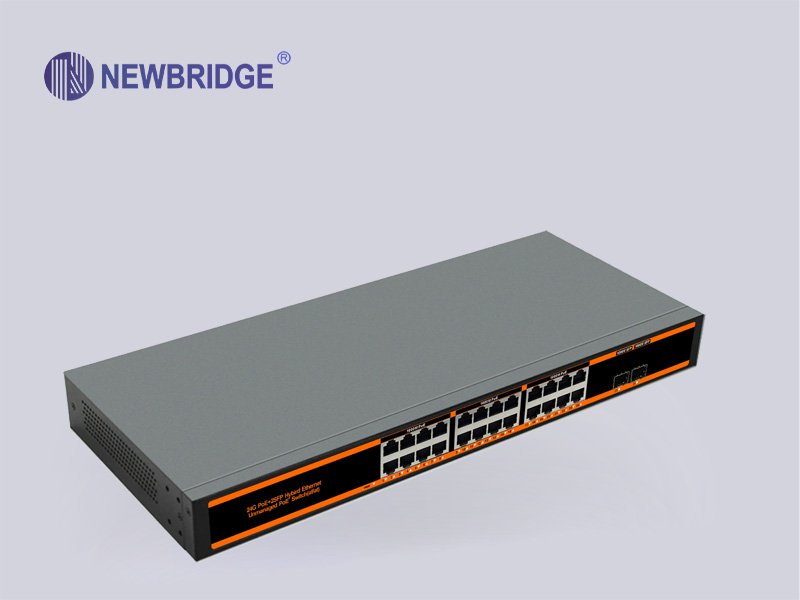

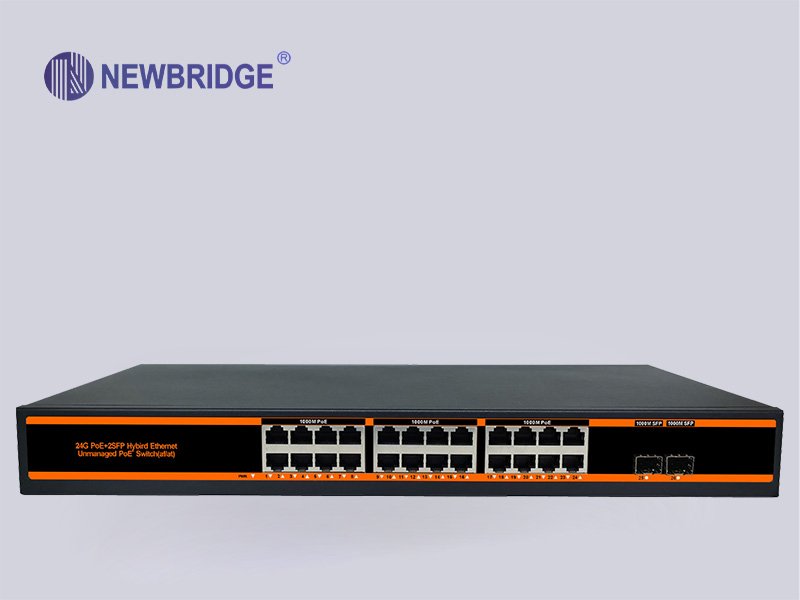

Newbridge®ND-HPG2402 series PoE switch is designed by NEWBRIDGE for meeting the demand of PoE power supply. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance. It has 24 PoE-powered RJ45 ports, 2 independent SFP expansion slot. All of twenty-four RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 300W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.
With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.
FEATURES
With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.
FEATURES
- 24*10/100/1000Mbps PoE ports,2*1000Mbps SFP Slot
- Support IEEE802.3af/at
- All port supported by MDI/MDIX auto flip and self-negotiation
- Built-in power supply
- Maximum power of single PoE port: 30 W
- Whole machine power: 300W
- Adopts store-and-forward architecture
- Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
- Support lightning protection 4KV
| Model | ND-HPG2402 | ||
| Chipset | Chip Brands | Chip Model | |
| REALTEK | RTL8382 | ||
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 300W | ||
|
Network Connector |
Network Port |
PoE Ethernet Port | 1～24 Port : 10/100/1000Mbps |
| SFP Port | SFP Port: 2*1000Mbps SFP | ||
|
Transmission Distance |
1～24 Port : 100/1000Mbps:0~100m | ||
| Uplink Port : 0 ~ 100m | |||
| SFP: depends on the optical module(20km...100km） | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch |
Network Standard |
IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab |
|
| Switching Capacity | 56Gbps | ||
| Packet buffer memory | 1Mbits | ||
| Throughput | 41.664Mpps | ||
| MAC Table | 2K | ||
|
Paket Forwarding Rate |
10Mbps:14880pps/port 100Mbps:148800pps/port 1000Mbps:1488000pps/port |
||
|
Power Over Ethernet |
PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12 45 + ,36 78- , 8 core power supply | ||
| PoE Power | af=15.4W,at=30W | ||
|
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
|
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender | |
|
Environmental |
Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
|
Mechanical |
Dimension (L×W×H) | 440mm*192mm*45m | |
| Color | Black | ||
| Weight | 2.6kg | ||
26 ports switch with 24*10/100/1000M bit PoE ports, 2*1000Mbps SFP Slot ,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps）,300W power supply
