1、4*10/100Mbps PoE ports, 2*10/100Mbps uplink port
2、Support IEEE802.3af/at
3、Support restrain network storm, VLAN function
4、Support Max Transmission distance up to 250m with PoE Power
5、All port supported by MDI/MDIX auto flip and self-negotiation
6、Built-in power supply;
7、Maximum power of single PoE port: 30 W;
8、Maximum PoE power: 7 5 W;
9、Adopts store-and-forward architecture;
10、Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
11、Support lightning protection 4000V
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 65W/78W | ||
|
Network Connector |
Network Port | PoE Ethernet Port | 1～4 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100Mbps | ||
|
Transmission Distance |
1～4 Port : 100Mbps:0~100m; 10Mbps: 0~250m; |
||
| Uplink Port : 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch |
Network Standard |
IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab |
|
| Switching Capacity | 1.2Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 0.8928Mpps | ||
| MAC Table | 1K | ||
|
Packet Forwarding rate |
10Mbps:14880pps/port 100Mbps: 148800pps/port | ||
|
Power Over Ethernet |
PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12+ ,36 - , 4 core power supply | ||
| PoE Power | af=15.4W,at=30W for each port | ||
|
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
|
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps; PoE Status Indicator; Power indicator;Extender |
|
|
Environmental |
Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
|
Mechanical |
Dimension (L×W×H) | 220mm*140mm*45mm | |
| Color | Black | ||
| Weight | 0.95kg | ||

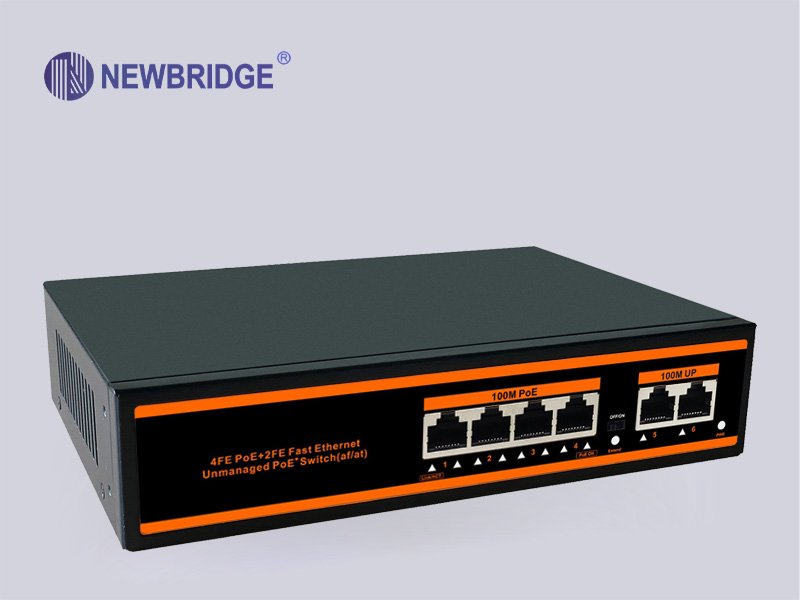

6 ports switch with 4*10/100M bit PoE ports2*10/100M Uplink Port
PoE Standard: IEEE 802.3af/at
PoE data & power transmission distance 100meters(100Mbps)250meters(10Mbps)
