ND-HP2422G

 Click on the picture to enter the Gallery

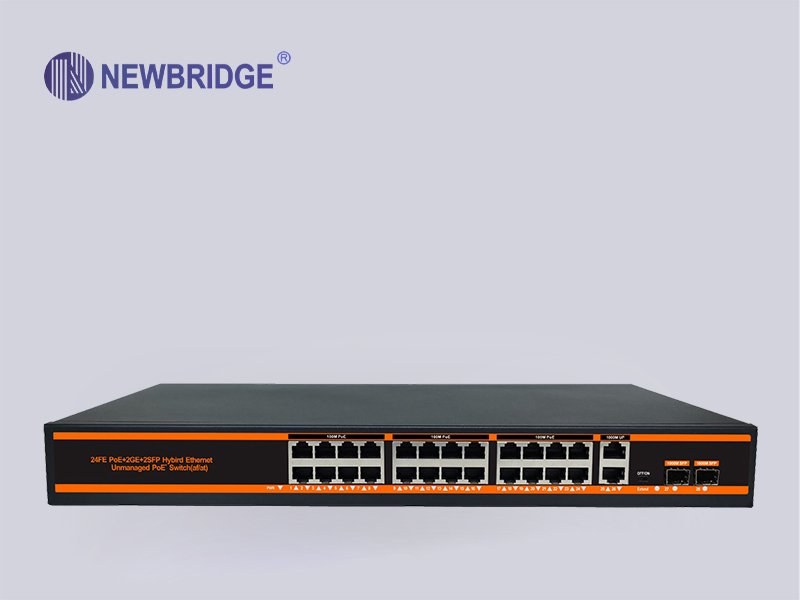

ND-P2422G

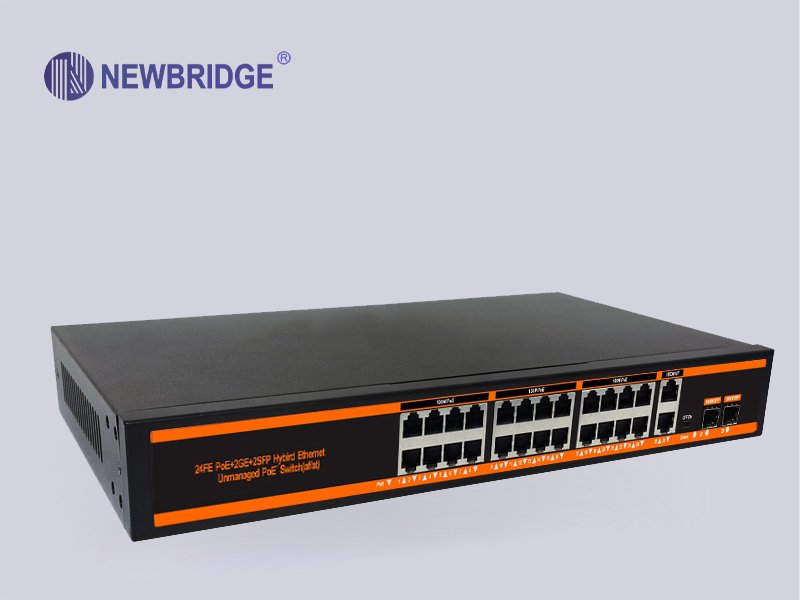

ND-P2422G斜
  •  24*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port，2*1000Mbps SFP Slot
  •  Support IEEE802.3af/at
  •  Support restrain network storm, VLAN function
  •  Support Max Transmission distance up to 250m
  •  All port supported by MDI/MDIX auto flip and self-negotiation
  •  Built-in power supply
  •  Maximum power of single PoE port: 30 W
  •  Maximum PoE power: 300W
  •  Adopts store-and-forward architecture
  •  Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
  •  Support lightning protection 4KV
Model ND-HP2422G
Chipset Chip Brands Chip Model
REALTEK+JLSemi RTL8367S+JL5108
Power Power Adapter Voltage AC 110V-240V
Consumption 300W



Network Connector
Network Port		 PoE Ethernet Port 1～24 Port : 10/100Mbps
Ethernet port Uplink Port : 10/100/1000Mbps
SFP Port SFP Port: 2*1000Mbps SFP

Transmission Distance		 1～24 Port : 100Mbps:0~100m;
10Mbps: 0~250m;
Uplink Port : 0 ~ 100m
SFP: depends on the optical  module(20km...100km）
Transmission Medium Cat5/5e/6 standard network cable




Network Switch		 Network Standard IEEE802.3/802.3u,
IEEE802.3x,IEEE802.ab
Switching Capacity 12.8Gbps
Packet buffer memory 1Mbits
Throughput 9.5232Mpps
MAC Table 2K

Paket Forwarding Rate		 10Mbps:14880pps/port
100Mbps:148800pps/port
1000Mbps:1488000pps/port

Power Over Ethernet		 PoE Standard IEEE 802.3af/at
PoE Power Supply 12 + ,36 - , 4 core power supply
PoE Power af=15.4W,at=30W

RJ45 port

Port Function		 Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

LED Indicator
LED Indicator		 LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender

Environmental		 Working temperature 0℃~55℃
Relative Humidity 20~95%
Storage temperature -20℃~70℃

Mechanical		 Dimension (L×W×H) 440mm*192mm*45mm
Color Black
Weight 2.35KG

27 ports switch with 24*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 2*1000Mbps SFP Slot ,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters (10Mbps),300W power supply
