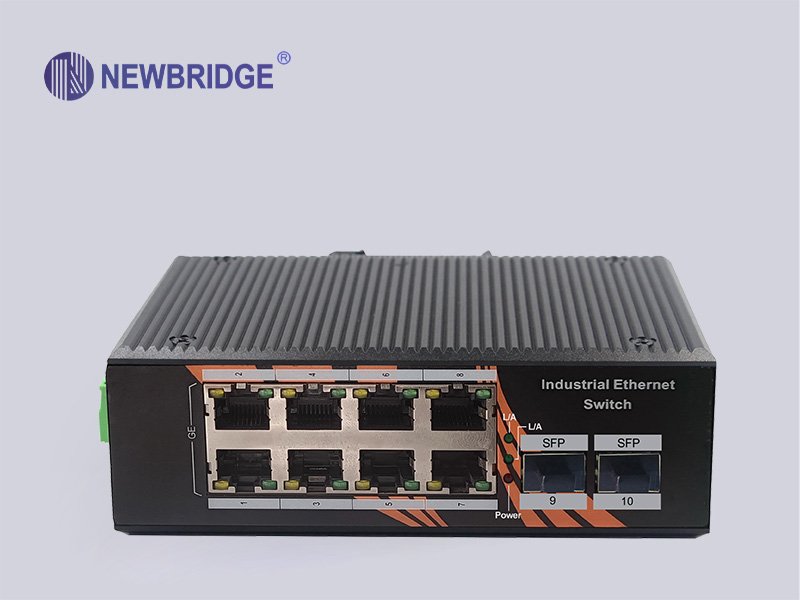

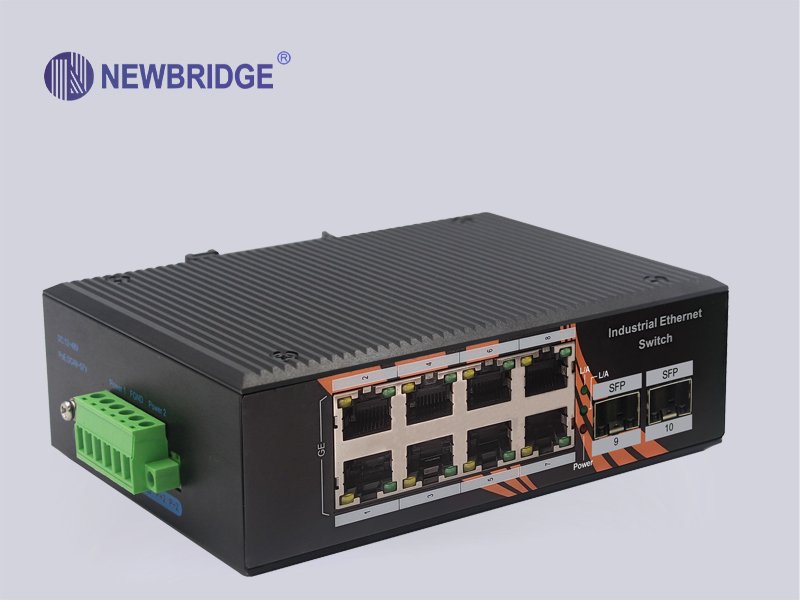

Newbridge® ND-IGS3210FP series is a WEB managed industrial-grade Ethernet PoE switch, supporting 2 Gigabit optical ports and 8 Gigabit electrical ports,（optional PoE); supporting Ethernet Layer 2 protocols required in industrial sites to ensure the stability of communication networks; this series switch adopts low power consumption and fanless design to ensure no noise interference, while supporting -40~85°C operating temperature With low power consumption and fanless design, it ensures no noise interference and supports -40~85°C operating temperature and good EMC performance to ensure stable operation in harsh industrial environment, providing a safe and reliable solution to build a fast and stable network terminal access network for industrial applications such as factory automation, intelligent transportation and video surveillance.
FEATURES
l Using high-quality optoelectronic integrated modules to provide good optical and electrical characteristics
l Ensure reliable data transmission and long working life
l Support full-duplex or half-duplex mode with auto-negotiation capability
l The network port supports automatic cross identification
l Built-in store-and-forward mechanism, supporting multiple protocols
l Support IEEE 802.1Q VLAN, easy network planning
l Support ERPS ring network to ensure network security
l Working power supply: DC 48-57V, provide reverse polarity protection
l Management function: support WEB management mode
| Product Name | 8 Port 10/100/1000M WEB network management industrial grade Ethernet switch |
| Product Model | ND2PGM-2FX8TX-SFP |
| Interface | 8x 10/100/1000Base-T ports（ PoE）+ 2x 1000M SFP slots |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;IEEE802.3af, IEEE802.3at； IEEE 802.3x Flow Control，IEEE 802.1q VLANs/VLAN tagging，IEEE 802.1p QoS |
|
PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports: 1-8 ports support PoE | |
|
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
| PoE port Auto detect AF/AT devices | |
| Output Voltage: DC48-57V | |
| Power Pin Assignment:1/2+;3/6- | |
| Power Type: End-span( Mid-span optional) | |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM Interface:2*SFP |
|
Performance Specification |
Bandwidth: 20Gbps Packet Buffer Memory:2Mbits 10 Mbps Packet Forwarding Rate：14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port 1000Mbps Packet Forwarding Rate:1488000pps/port MAC Address Table: 8K Switching Delay: <5us |
| Forwarding Mode | Store-and-Forward |
| Protection | 6KV Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; PoE; Link/Act |
|
Power Supply |
Input Power: 48~57VDC (Terminal Block) Input Power:2* 48~57VDC(Dual power redundancy backup) Working Consumption : <8W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 120s Alarm contact : No |
| Software Specifications | |
|
L2 Switching Features |
• IGMP Snooping |
| - Support IGMP Snooping | |
| - Support 128 groups | |
| • Port aggregation | |
| - Support static aggregation | |
| - Support 8 groups of aggregation, each group has up to 4 ports | |
| • Port mirroring | |
| - Support one-to-one | |
| - Support many-to-many | |
| • Ring function, automatically disconnect the loop port | |
| • DHCP snooping to prevent secondary routing IP assignment (optional) | |
| • Support port isolation, port grouping | |
| VLAN | • Supports 128 VLANs (4K VLAN IDs) |
| • Supports port VLAN and 802.1Q VLAN | |
| • Support Port-based/802.1p/DSCP priority | |
| Quality of Service (QoS) | • Supports 4 pairs of columns |
| • Port speed limit | |
| • Storm Control | |
| Management | • Support WEB network management |
| MAC | Learned MAC address limiting; |
| Other Specifications | |
|
Working Environment |
Working temperature: -40～+85℃ ; Storage temperature: -40～+85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Industry Standard |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±15kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): Power line: ±4kV; Data line: ±2kV IEC(EN)61000-4-5(Surge): Power line: ±2kVCM/±4kVDM; Data line: ±4kV IEC(EN)61000-4-6 (radio frequency conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
|
Packing List |
1×Industrial PoE Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit |
|
Certification |
CE mark, commercial; FCC Part 15 Class B; EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours |
| Weight & Size |
Product Weight: 0.9 KG Product size (L×W×H): 170mm× 160mm× 50mm |
| Warranty | 5-years |
2*1000M SFP slot, 8*10/100/1000 Base-Tx web managed PoE Fiber Switch ,Industrial , aluminum alloy, DIN Rail, DC48~57V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHs - DC power supply is not included by default.
